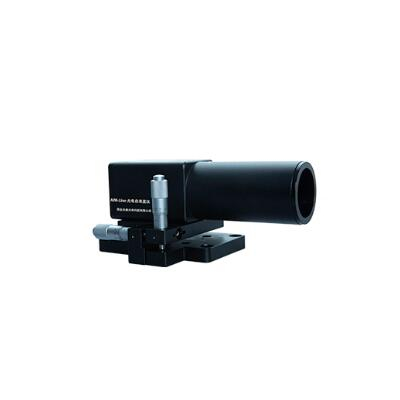

GIM-Line Optical autocollimator

GIM series photoelectric autocollimator is a kind of high-precision micro-angle measuring instrument applying advanced photoelectric technology, which is characterised by high precision, stable performance and easy operation. There are several models of GIM series to meet the different application requirements of customers.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Technical features:

Large field of view

Simultaneous measurement of both axes

Multiple measurement modes available

Multi-target measurement

High measurement accuracy

Multi-device co-operation

Support TCP/IP protocol remote data call

Support software secondary development

Support remote control

Main Applications:

Optical small angle test

Optical orientation

Optical Inspection

Optical adjustment

Precision rotary table rotary accuracy, positioning accuracy test

Precision mechanical product testing and installation positioning

Small vibration detection

Technical Specifications:

Item/Model		GIM-100-Line
Monitoring Range		100mm
Resolution		0.1"
Repetitive		0.2"
Accurate	±50"	±0.3"
	±1000"	±0.6"
Optical tube calibre		38mm
Field of view		6800"×5400"
Data Interface Operating Voltage		USB3.0@5V
Working distance		15m
